Sharpening Supplies Now Offers Atoma Diamond Sheets

Replacement Sheets for Atoma Diamond Plates

Featuring the Atoma Precision Placed Diamond Clusters
Instead of randomly coating the plate with diamonds, Atoma Plates have precisely placed clusters of monocrystalline diamonds laid out in a pattern on the surface of a stainless steel sheet. This arrangement creates a even, fast cutting surface more aggressive than randomly placed diamonds. And the geometric patterning creates channels between the clusters for waste material to collect, allowing it to get out of the way so the stone continues to cut without clogging.

Replace the Surface of your Original Atoma Diamond Plate

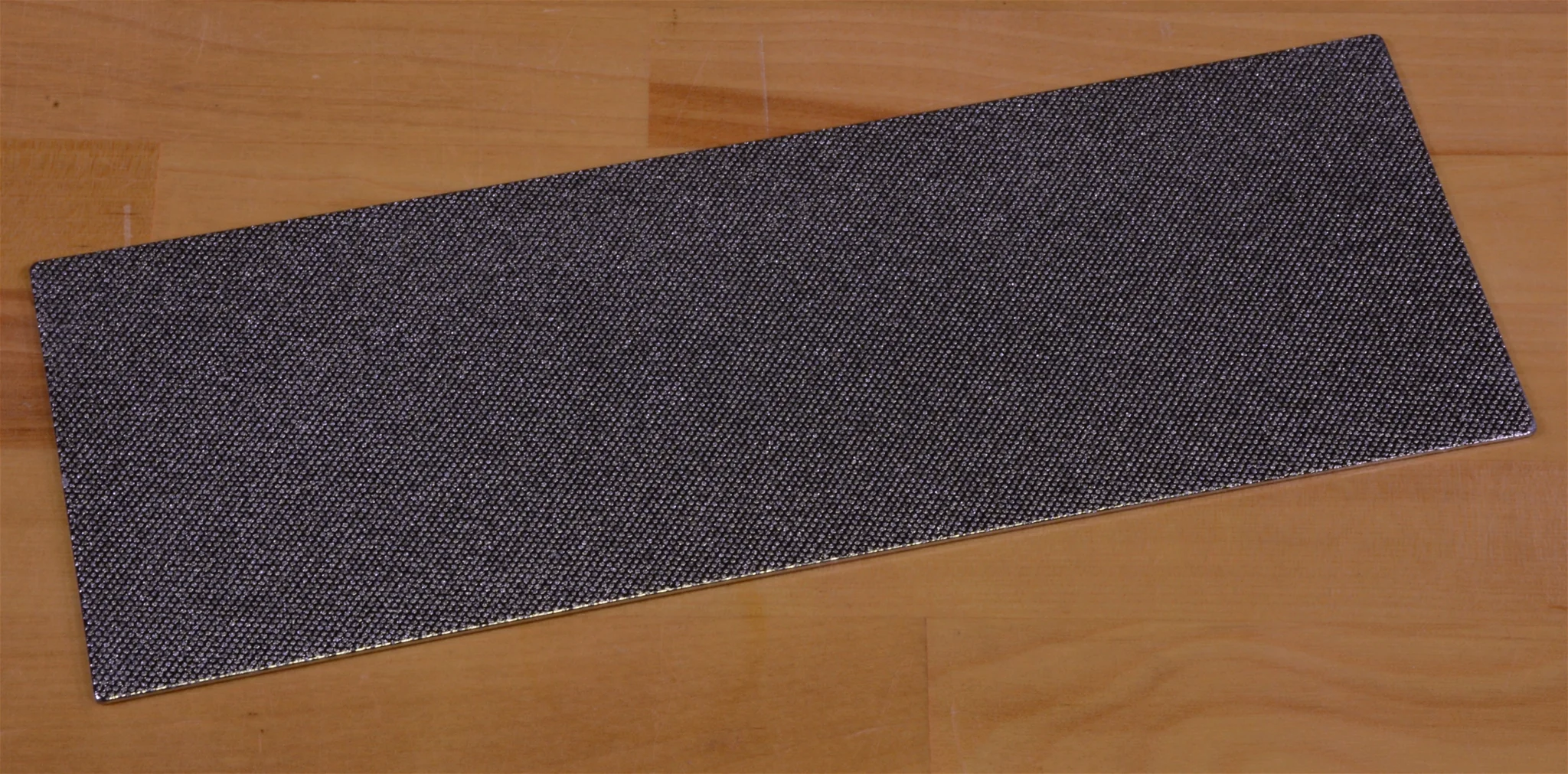

The diamonds are mounted to a piece of stainless steel that is 1mm thick, 210mm (8-1/4") long and 75mm (2-13/16") wide.The diamond coated steel can then be mounted on the aluminum base plate from an Atoma Diamond Plate. The adhesive is already supplied on the back of the sheet.

Choose from Four Grits:

• 140 grit (88 - 105 microns) - for aggressive material removal reshaping edges or flattening stones
• 400 grit (37 - 44 microns) - fast removal, but leaves a smoother surface
• 600 grit (30 - 40 microns) - refines edges, smooths stone surfaces
• 1200 grit (10 - 20 microns) - for fine edges or the smoothest stone surfaces
