Dust Collection for MAG-8100 and MAG-8200 Series Sharpeners

The Magna-Matic MAG-200-4H Dust Collector is specifically set up for the MAG-8100 Standard Lawn Mower Blade Sharpener 1/3 HP or the MAG-8100 Standard Lawn Mower Blade Sharpener 1/2 HP as well as the MAG-8200 Lawn Mower Blade Sharpener with Fixed Table 1 HP and the MAG-8200M Universal Lawn Mower Blade Sharpener with Modular Table 1 HP.

This is an industrial quality dust collector designed for dry metal grinding of lawn mower blades. The MAG-200-4H features 3 stages of filtration a metal mesh and has a quiet 70 decibel operating noise level.

Gen3 Dust Collector

This is the Gen 3 Edition of the MAG-200 Dust Collector. It uses larger filters than the Gen 1 and Gen 2 editions.

Filtration Features

The MAG-200 features 3 stages of filtration that safely draw live sparks, dust, and grit.

Three Stages of Filtration:

• METAL MESH FILTER - Breaks up air flow and kills sparks.
• MERV 8 FILTER - Removes particles 3 micron in size and larger.
• MERV 13 FILTER - Removes particles 0.3 to 1 micron in size.

What's Included

The MAG-200-4H comes with:

• MAG-200 Dust Collector
• 4" diameter Inlet - Part 200-36
• Metal Mesh Filter (installed) - Part # 200-12
• MERV 8 Pad Filter 12" x 12" (installed) - Part# 200-80

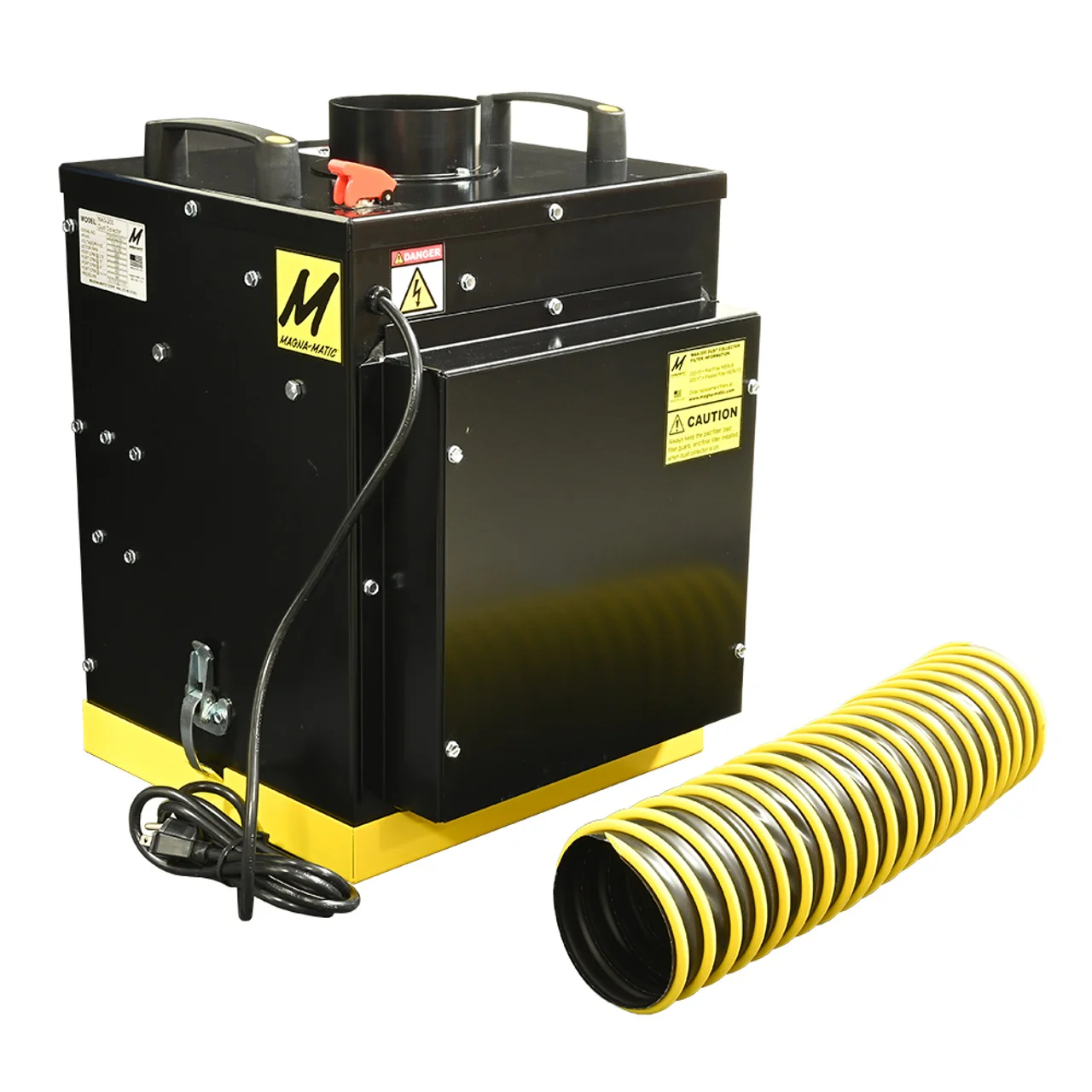

• 4" diameter Spiral Hose 16" long  (This is the correct length of hose for connecting the dust collector to the grinder when mounted on a MAG-10400 Stand. Using without a stand may require a longer length of hose.)
• Third Stage Filter Shroud
• MERV 13 Pleated Filter 12" x 12" x 4" - Part# 200-81

Mounts to MAG-10400 Sharpening Service Center Stand

The MAG-200-4H can be mounted to the MAG-10400 Sharpening Service Center Stand by using the MAG-200-20-KIT.
